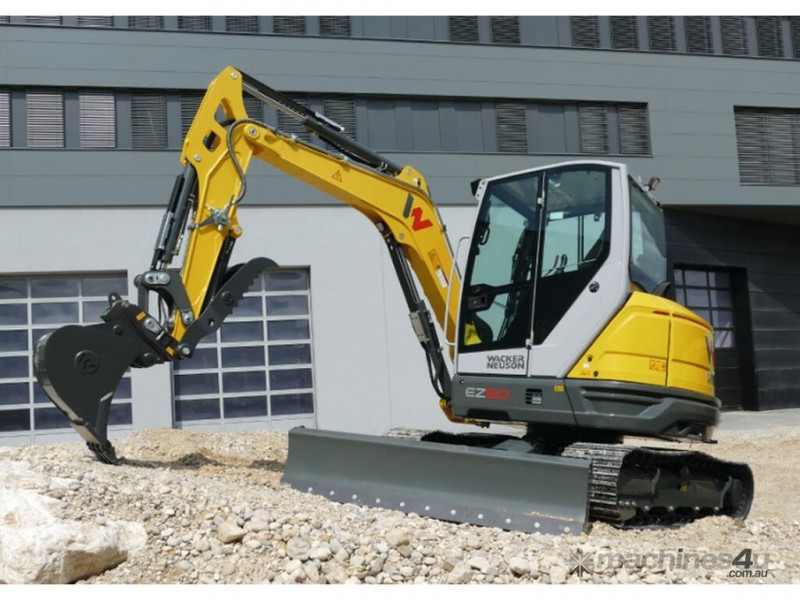

Wacker EZ50 tracked zero tail excavator

Type:	Wacker EZ50
Engine:	Diesel - Perkins 403J - E17T
Operating weight (kg):	5211 kg
Digging depth (mm):	3667 mm
Digging radius (mm):	6150 mm
Bucket pivot angle:	200 degrees
Maximum dump height (mm):	3784 mm
Travel speed (km/h):	4,4 km/h
Digging force (N):	3680 N
High flow:	Yes
Fuel tank capacity (liter):	52 liter
Dimensions (mm):	5467 x 1960 x 2555
Accessories:	Digging bucket 40, 60 cm Tilt cleaning bucket 140 cm



Tracked excavator rental, excavator rental, zero tail tracked excavator rental Bérgép Kft.

Full speed ahead: The EZ50 mini-excavator offers excellent lifting and digging power as well as quick work cycles. Using the newest technologies, the emissions of the mini-excavator were reduced and, at the same time, the efficiency increased. For example, the powerful engine in the EZ50 meets the stage 5 exhaust emission standards. In terms of operator-friendliness, the excavator is impressive. The intuitive operating concept and excellent view of the work area contribute to the easy and comfortable operation of the machine. The EZ50 is also a zero-tail excavator and is well suited for working in narrow spaces.

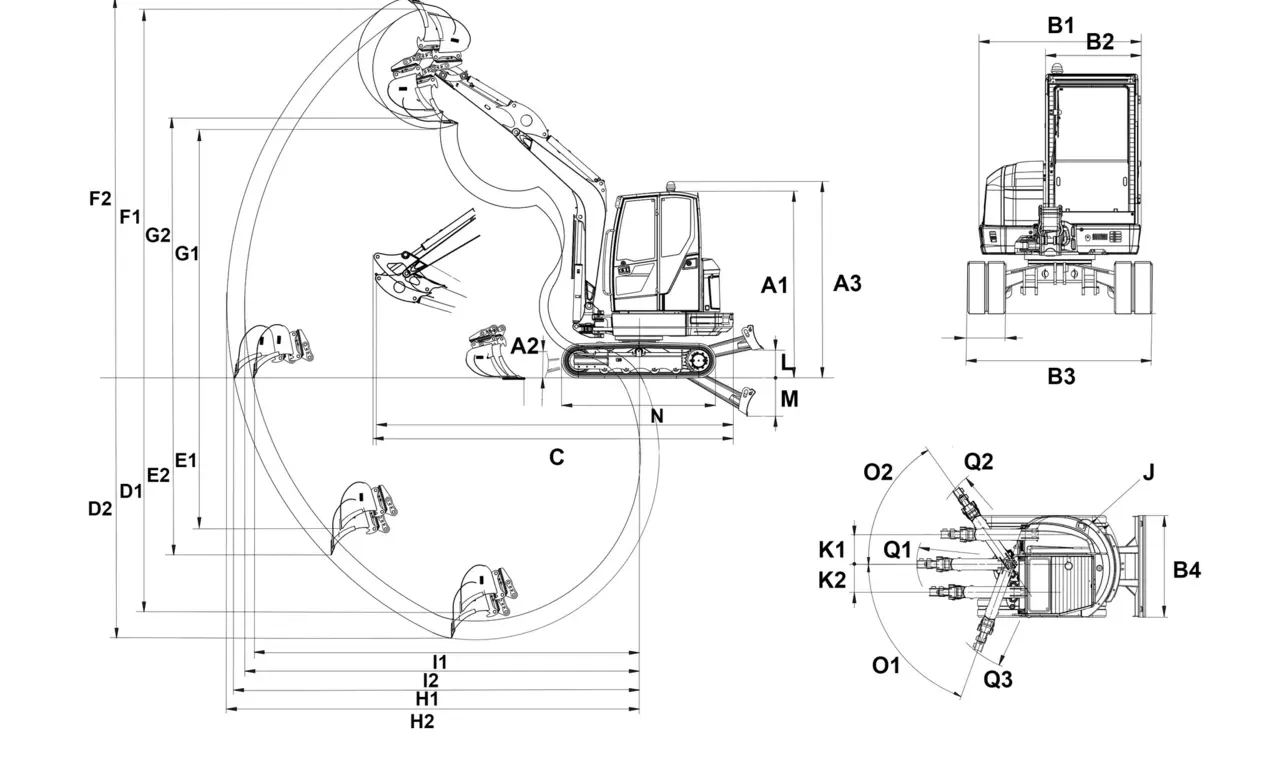

Dimensions

A Height 2,555 mm

A Height with rotating beacon 2,667 mm

B Width revolving superstructure 1,724 mm

B Width cab 980 mm

B Width travel gear 1,960 mm

B Width dozer blade 1,960 mm

C Transport length max., short dipper stick 5,467 mm

C Transport length max., long dipper stick 5,482 mm

D Digging depth max. short dipper stick 3,467 mm

D Digging depth max. long dipper stick 3,667 mm

E Insertion depth max., short dipper stick 2,085 mm

E Insertion depth max., long dipper stick 2,262 mm

F Insertion height max., short shovel arm 5,470 mm

F Insertion height max., long dipper stick 5,599 mm

G Dump height max. short dipper stick 3,655 mm

G Dump height max. long dipper stick 3,784 mm

H Digging radius max. short dipper stick 5,916 mm

H Digging radius max. long dipper stick 6,150 mm

I Range max., short dipper stick 5,794 mm

I Range max., long dipper stick 5,988 mm



3-point kinematics

• With 3-point kinematics, the conventional bucket linkage has been taken to a new level. This "3-bolt" design extends the bucket's angle of rotation to 200 degrees - 10% more than conventional bucket linkage. This increases the vertical dig depth as well as the digging forces. This eliminates the need to reposition the excavator as often, significantly increasing efficiency.
• Zero Tail
• When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem.
• Optimum working in confined spaces, a high degree of maneuverability and time savings are guaranteed.
